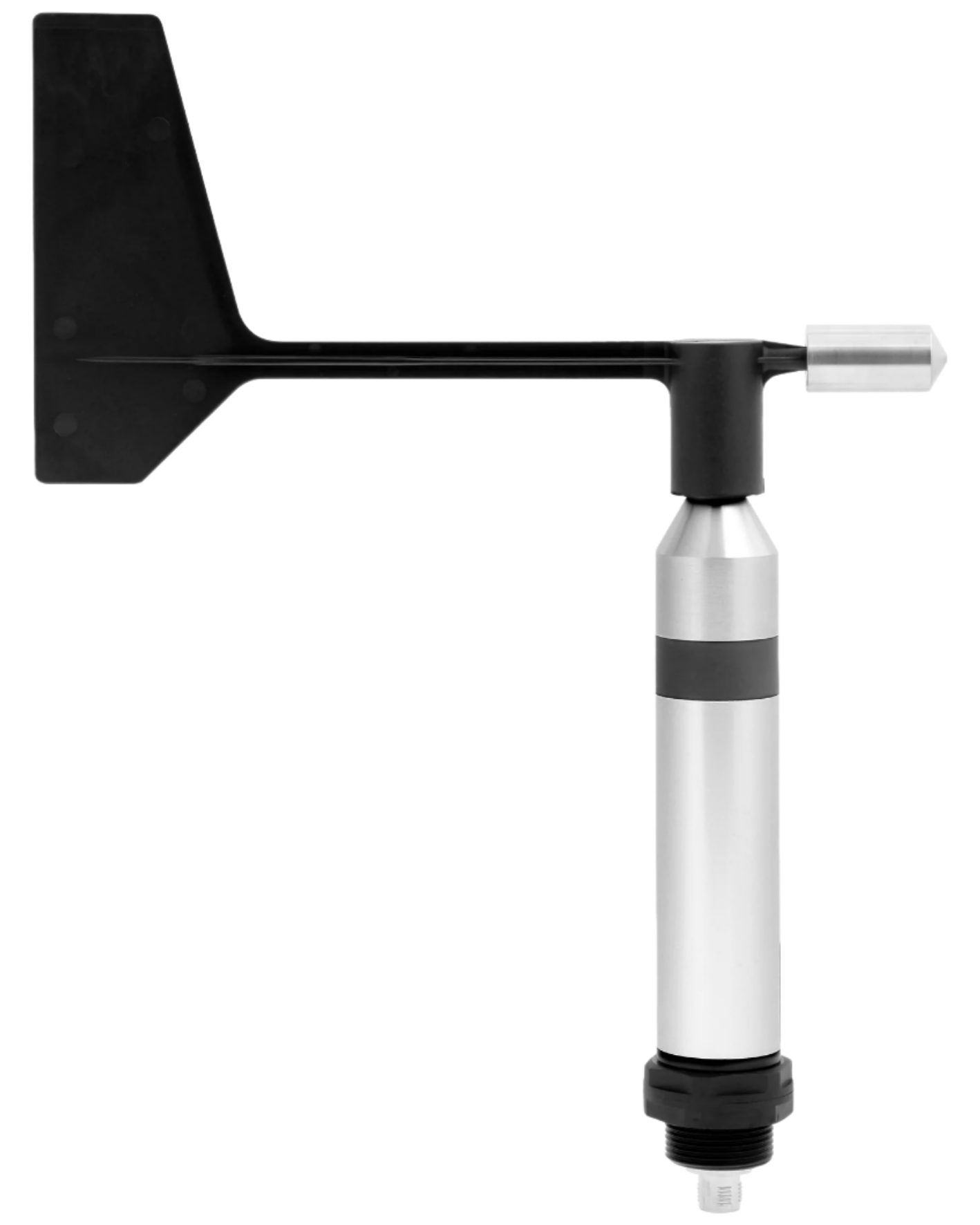

INDUSTRY wind direction sensor 0...10 V
€343,00 EUR
INDUSTRY wind direction sensor 0...10 V
INDUSTRY wind direction sensor 0...10 V
Couldn't load pickup availability
For every application: Reliable, precise, proven
The INDUSTRY wind direction sensor is a cost-effective investment and has proven itself over many years in numerous applications worldwide. The sensor impresses with high accuracy, a straightforward mounting principle, as well as seawater-resistant and extremely robust materials. Thanks to the thermal decoupling of the housing shaft, optimal heating of the sensor head is achieved while minimizing the system's energy requirements.
- Precision, tradition and future reliability
- Large operative measuring and temperature range
- Simplest mast mounting
- Very good starting values through magnetic, contactless measuring principle
- Optimal heating concept
APPLICATIONS
- Industry applications
- Wind turbines
- Building services
- Wind warning systems
- Environment measurement technology
Product details
Data sheet
|
Id-No. |
00.14567.110080 |
|---|---|
|
Measuring range |
0...360° |
|
Accuracy |
± 2° |
|
Signal input |
0...10 VDC = 0...360° |
|
Output |
24 VDC (20...28 VDC) · max. 800 mA |
|
Interface |
Wind vane • dimensionally stable fiber-reinforced plastic |
|
Measurement intervals |
Temperatures -30...+70 °C heated * • Speeds 0...60 m/s |
|
Operating conditions |
Seawater-resistant aluminum · anodized · IP 55 · shaft diameter 32 mm · with black plastic ring for thermal decoupling (when heated) · for mounting hole diameter 30 mm with max. 10 mm material thickness |
|
Supply voltage |
Hall sensor array, non-contact |
|
Power consumption |
2° |
|
Storage capacity |
< 0.7 m/s |
|
Weight |
0,35 kg |
|
